Fabricante China Wire Rope Sling

8x7-WSC 1x19 1.5mm Stainless Steel Cable for Truck Window Regulator

Detalhes do Produto:
Local de Origem: China.
Nome Da Marca: LKS
Certificação: CCS,DNV,BV
Número do modelo: LKS-WR1120
Pagamento & Termos de Envio:
Quantidade mínima de ordem: 5000mtrs.
Preço: USD0.8-1.8 por Metro
Detalhes Da Embalagem: Coral de Madeira
Tempo de entrega: 10-15 DIAS
Termos de pagamento: L/C, T/T
Capacidade de fornecimento: 5000mtrs mensal

Informação detalhada

Classe de aço:Carbono Steel 45 sola35; 60 sola35; 70 sola35;Permitir ou não:Não ligado
Aplicação:FabricaçãoGaze de arame:1.0mm-8mm
Normas:GB,ASTM,DIN,AISI,BSUtilização especial:Aço de cabeça fria, Aço de Corte Livre
Força de Tensile:1270-2160MPASuperfície:Quente/electrogalvanizado/não alvanizado, inoxidável
Embalagem:Wooden Reel ou Coil, Wooden Reel, Roll Packing, Como SEU requisito.Utilização:Equipamento
Alta Luz:

wire rope cable

,

steel rope cable

Descrição do Produto

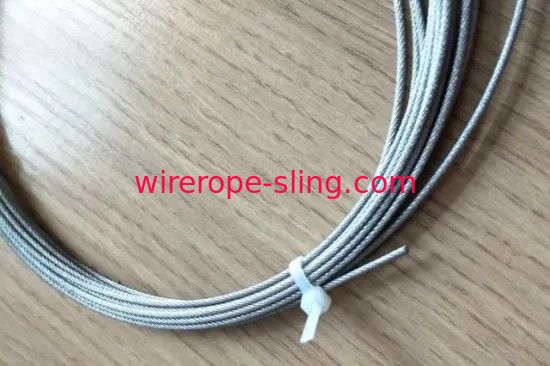

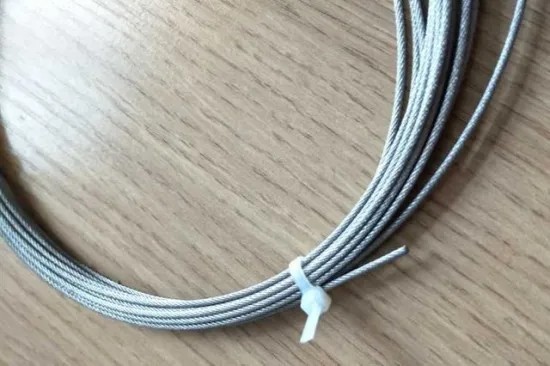

8x7-WSC 1x19 1.5mm Stainless Steel Cable for Truck Window Regulator

1).Type: Stainless Steel Cable

2).Grade: 304 A2 1.4301 (316 A4 1.4401 available)
3).Surface: Bright

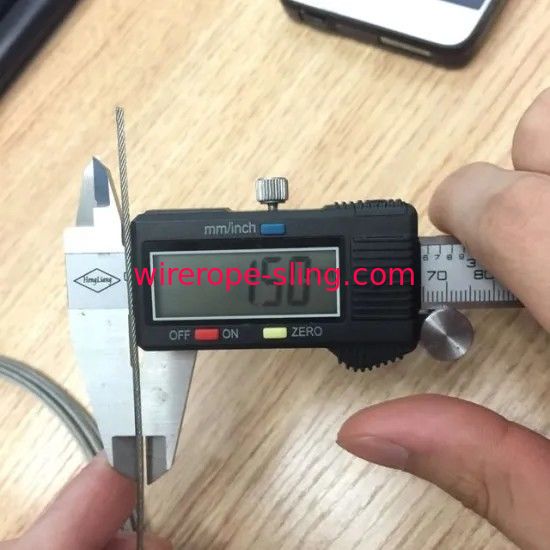

4).Diameter: 1.5mm
5).Construction: 8x7-WSC 1x19
6).Core: WSC
7).Length: 500m/reel,1000m/reel,1500m/reel,2000m/reel etc
8).Packing: Wrapped with plywood reel then put on pallets
9).Payment Term: T/T
10).Loading Port: Shanghai China
11).Delivery Term: EXW,FOB,CFR,CIF
12).MOQ: 10000 meters if no stock
13).Delivery Time: within 10 days after receiving deposit

14).Twist Dirction: RHOL

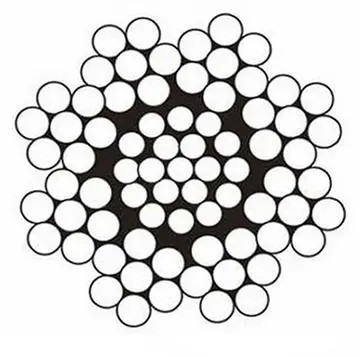

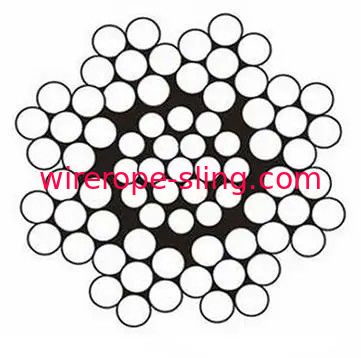

Product Structure

  • 8x7-WSC 1x19 1.5mm Stainless Steel Cable for Truck Window Regulator 08x7+1x19
  • 8x7-WSC 1x19 1.5mm Stainless Steel Cable for Truck Window Regulator 17x7


Application
These window lifter fine steel cords are designed for the window lifter system in cars allowing the window to move up and down as desired.

Features: Small diameter, strong corrosion resistance and high fatigue strength for long term usefulness.

Surface finish: Galvanized & Zn-Al Plated

Packaging: 42C spool

Standard: Compliant with BORSE and GB/T 14451 standards

Advantages:
1. Outstanding performance, safety, and cost effectiveness.
2. The high quality steel wire prolongs the lifespan of the window lifter system as a whole.
3. Minimal elongation.
4. High breaking resistance.
5. Alternatives can be provided to meet various requirements in regards to corrosion, humidity, acidic exposure, etc.



inch to mm convert table ( 1 ft =12 inch ; 1 inch = 25.4 mm ) :

inch mm inch mm inch mm inch mm
1/2 0.5 12.7 3/32 0.09375 2.381 3/64 0.046875 1.191 35/64 0.546875 13.891
1/4 0.25 6.35 5/32 0.15625 3.969 5/64 0.078125 1.984 37/64 0.578125 14.684
3/4 0.75 19.05 7/32 0.21875 5.556 7/64 0.109375 2.778 39/64 0.609375 15.478
1/8 0.125 3.175 9/32 0.28125 7.144 9/64 0.140625 3.572 41/64 0.640625 16.272
3/8 0.375 9.525 11/32 0.34375 8.731 11/64 0.171875 4.366 43/64 0.671875 17.066
5/8 0.625 15.875 13/32 0.40625 10.319 13/64 0.203125 5.159 45/64 0.703125 17.859
7/8 0.875 22.225 15/32 0.46875 11.906 15/64 0.234375 5.953 47/64 0.734375 18.653
1/16 0.0625 1.588 17/32 0.53125 13.494 17/64 0.265625 6.747 49/64 0.765625 19.447
3/16 0.1875 4.763 19/32 0.59375 15.081 19/64 0.296875 7.541 51/64 0.796875 20.241
5/16 0.3125 7.938 21/32 0.65625 16.669 21/64 0.328125 8.334 53/64 0.828125 21.034
7/16 0.4375 11.113 23/32 0.71875 18.256 23/64 0.359375 9.128 55/64 0.859375 21.828
9/16 0.5625 14.288 25/32 0.78125 19.884 25/64 0.390625 9.922 57/64 0.890625 22.622
11/16 0.6875 17.463 27/32 0.84375 21.431 27/64 0.421785 10.716 59/64 0.921875 23.416
13/16 0.8125 20.638 29/32 0.90625 23.019 29/64 0.453125 11.509 61/64 0.953125 24.209
15/16 0.9375 23.813 31/32 0.96875 24.606 31/64 0.484375 12.303 63/64 0.984375 25.003
1/32 0.03125 0.794 1/64 0.01562 0.397 33/64 0.515625 13.097 64/64 1 25.4
Chemical Composition of common Stainless Steel Grades
%
Component C Si Mn P S Cr Ni Mo
304 MAX 0.08 MAX 1.00 MAX 2.00 MAX 0.045 MAX 0.03 17.00-19.00 8.00-10.00
304L MAX 0.03 MAX 1.00 MAX 2.00 MAX 0.045 MAX 0.03 18.00-20.00 8.00-10.00
316 MAX 0.08 MAX 1.00 MAX 2.00 MAX 0.045 MAX 0.03 16.00-18.00 10.00-14.00 2.00-3.00
316L MAX 0.03 MAX 1.00 MAX 2.00 MAX 0.045 MAX 0.03 16.00-18.00 12.00-15.00 2.00-3.00
